Product Features

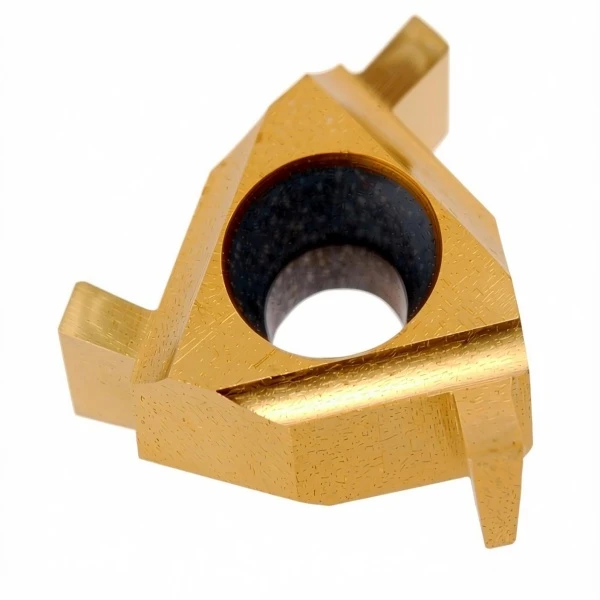

Flat-top grooving inserts are a type of carbide indexable grooving tool. Based on their groove profile structure, they can be classified into two categories: flat-top grooving inserts and profile grooving inserts. Furthermore, based on the machining space, they are categorized into internal grooving inserts, external grooving inserts, and face grooving inserts. Their key characteristics include:
First, it features a high level of precision.
The inserts exhibit excellent dimensional consistency, and the cutting-edge radii are standardized and precise, ensuring stable and reliable machining quality.
Second, it offers high machining efficiency.
The indexable design allows for rapid and precise replacement of cutting edges, significantly reducing non-machining downtime-a distinct advantage, particularly in continuous production environments.
Third, it boasts an optimized structure and excellent chip evacuation capabilities.
The flute geometry-characterized by features such as a large positive rake angle-is designed to minimize cutting resistance; this design creates a flat flute bottom that aligns perpendicularly with the workpiece, thereby extending tool life and enhancing surface finish.
Fourth, it utilizes advanced materials and coatings.
It predominantly employs PVD-coated carbide inserts, which strike an optimal balance between wear resistance and impact toughness, making them suitable for machining a wide range of materials, including steel, stainless steel, and cast iron.
Application Areas
Flat-top grooving inserts are primarily utilized for machining the sealing grooves found in various pneumatic and hydraulic fittings. They have successfully replaced expensive imported tooling as well as lower-precision welded tools, thereby significantly boosting production efficiency and reducing manufacturing costs. Furthermore, these inserts are widely employed across industries such as automotive components (e.g., pulley keyways), aerospace, energy, and rail transit for the high-precision machining of formed grooves. They are capable of machining groove widths ranging from 0.5 to 3.5 mm and depths from 0.5 to 4 mm, with a minimum bore diameter capability of 8 mm. They are also frequently used for machining small shaft-type components within the computer, electronics, and home appliance sectors.
