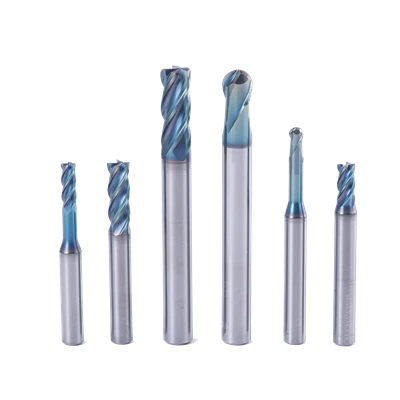

Milling Tools for Different Materials and Machining Operations
A milling tool must match the workpiece material, machining operation, and cutting conditions. Tool geometry, carbide grade, coating, and flute design all influence tool selection.
At Shun Wei Precision Technology, we manufacture and supply a range of milling tools, including micro end mills, stainless steel end mills, high-feed end mills, roughing end mills, PCD end mills, and indexable face milling tools.
Our product range covers machining applications involving steel, stainless steel, hardened steel, aluminum alloys, copper, cast iron, titanium alloys, graphite, and composite materials.
-
Tapping ToolsThe SW ET166 series is an economical tapping tool solution developed for threading aluminum, copper and other suitable non-ferrous materials. Designed to address different machining requirements,...
-
Cast Iron Tapping ToolThe economical straight fluted tap is designed for efficient internal thread cutting in cast iron components. Made from cobalt-containing high-speed steel and finished with a TiAlSi coating, it...
-
High-Feed Inserts For 40CrMo Alloy SteelHigh-Feed Inserts for 40CrMo Alloy Steel are indexable carbide milling inserts engineered for high-feed roughing and controlled stock removal. Built for integration with compatible high-feed...
-
High-Feed Milling Cutters For Automotive Cylinder HeadsHigh-Feed Milling Cutters for Automotive Cylinder Heads support high-feed rough milling of suitable cylinder head surfaces, steps and recessed areas. A small approach angle and shallow axial...
-
High-Feed Milling Cutters For Automotive Engine BlocksHigh-Feed Milling Cutters for Automotive Engine Blocks support high-feed rough machining of suitable engine block surfaces, steps and recessed areas. The cutting geometry combines a low lead angle...
-
Machining TapsET138 Economical Steel Machining Tap, HSS-Co Tap, Tapping Tool for Carbon Steel & Alloy Steel
-
Boring ToolsThe GPT Series micro boring tools are designed for general-purpose machining of steel components. Manufactured from premium cemented carbide, these precision boring tools deliver stable...
-
PCD End MillsDNM100 Solid PCD End Mills for Non-Ferrous Metals & Composites
-
Face Milling InsertPositive eight edges 43°face milling ODK(M)T insert+MFA143 cutter holder
-
Micro EndmillsSHM200 Endmills of micro diameter for deep machining
-
Endmills For Stainless SteelsSS600 Endmills for Stainless Steels
-
High Feed End MillsFH200-H End Mills optimized for high feed milling of hardened steel
Our Milling Tool Range
| Product | Design Features | Main Applications |
|---|---|---|
| Micro End Mills – SHM200 | Micro-diameter design, reduced neck, specialized cutting angles, optimized flutes | Deep cavities, narrow slots, small precision features |
| Stainless Steel End Mills – SS600 | Unequal helix angles, unequal tooth spacing, parabolic flutes, reinforced cutting edges | Carbon steel, stainless steel, alloy steel, cast iron, heat-resistant alloys, titanium alloys |
| High-Feed End Mills – FH200-H | High-feed geometry, small chip thickness design | Rough machining of hardened materials |
| Roughing End Mills – UPN210 | Flat knuckle tooth geometry, large-radius chip pockets | Roughing and semi-finishing of steel and cast iron |
| PCD End Mills – DNM100 | Polycrystalline diamond cutting edges | Aluminum alloys, copper, graphite, cemented carbide, composites |
| Indexable Face Milling Tools – ODK(M)T + MFA143 | Positive-rake octagonal inserts, eight usable cutting edges, wiper-edge design | Face milling and surface finishing |
Micro End Mills for Deep Cavities and Narrow Slots
Our SHM200 series combines a micro-diameter cutting design with a reduced neck, specialized cutting angles, and optimized chip evacuation flutes.
The reduced neck provides clearance when machining deep cavities and narrow slots, while the flute design addresses chip evacuation in confined machining areas.
SHM200 uses GU ultra-fine-grain carbide with TiAlSiN coating. The tool shank tolerance is H5, and published applications include pre-hardened and hardened steels up to HRC 65.
Stainless Steel End Mills for Difficult Machining Conditions
Our SS600 series features unequal helix angles, unequal tooth spacing, parabolic flutes, and reinforced cutting edges.
The unequal helix angles and tooth spacing are designed to address vibration during milling. Parabolic flutes provide space for chip evacuation.
Published applications include carbon steel, alloy steel, stainless steel, cast iron, heat-resistant alloys, and titanium alloys.
High-Feed and Roughing End Mills
For hardened-material roughing, our FH200-H series is designed for workpieces with hardness from 35 to 65 HRC. Its small chip thickness geometry supports high-feed milling operations. The series uses ultra-fine-grain carbide with a new-generation hard coating.
For steel and cast iron roughing, UPN210 features flat knuckle tooth geometry and large-radius chip pockets. Its tooth design helps shorten chips, while the chip pockets provide space for chip evacuation.
UPN210 uses GU fine-grain carbide with an AlCr-series nano coating. Published applications include roughing and semi-finishing of steel and cast iron, with a stated hardness range up to 48 HRC.
PCD End Mills for Aluminum and Non-Ferrous Materials
Our DNM100 series uses polycrystalline diamond (PCD) cutting edges.
It covers applications involving cast aluminum, aluminum-silicon alloys, copper, cemented carbide, graphite, GFRP, CFRP, reinforced plastics, and wood.
Depending on the workpiece and machining operation, DNM100 can be used for face milling, side milling, roughing, semi-finishing, and finishing. Dry-machining applications are also included in the product range.
Indexable Face Milling Inserts and Cutter Bodies
Our indexable face milling products include ODK(M)T positive-rake octagonal inserts paired with MFA143 cutter bodies.
Each insert provides eight usable cutting edges. The wiper-edge design is intended for face-milling applications where surface finish is important.
Available insert application categories include:
- GL: Light cutting
- GM: General machining
- GH: Heavy cutting
- AL: Aluminum machining
- WB: Wiper applications
Published insert grade options include GA4225, GA4230, GPM7120, GP4225, GM2140, and GK4125.
Milling Tool Specifications and Cutting Examples
The following table provides specific product dimensions and published machining conditions for different tool models and applications.
| Series | Model | Dimensions | Workpiece Material | Cutting Conditions |
|---|---|---|---|---|
| SHM200 | SHM200-BN2-3-8-K | R1.5 × 2.4 × 8 × 55 × d6 × D2.88 | SKD11, 60 HRC | Vc: 113 m/min; fz: 0.11 mm/z; ap: 0.04 mm; ae: 0.04 mm; water cooling; end milling |
| FH200-H | FH200-R6-08005-H | D8 × R0.5 × 7 × 24 × 75 × d8 × D7.5 | SKD11, 58–62 HRC | Vc: 60 m/min; fz: 0.14 mm/z; ap: 0.1 mm; ae: 6 mm; air cooling; side milling |
| SS600 | SS600-S4-02506 | D2.5 × 6 × 50 × d4 | 30CrMoSiA, 42 HRC | Vc: 40 m/min; fz: 0.04 mm/z; ap: 0.5 mm; ae: 2.0 mm; emulsion cooling; slot milling |
| UPN210 | UPN210-S4-10025 | D10 × C0.3 × 25 × 75 × d10 | 45# steel, HB220 | Vc: 172.7 m/min; fz: 0.027 mm/z; ap: 6 mm; ae: 10 mm; emulsion cooling; slot milling |
| DNM100 | DNM100-RS2-08002 | D8 × R0.2 × 15 × 75 × d10 | Aluminum alloy | Vc: 200 m/min; fz: 0.05 mm/z; ap: 0.04 mm; dry cutting; face and side milling |
| ODKT Insert | ODKT060508-GM, grade GK4125 | Insert specification | HT300 cast iron | Vc: 220 m/min; fz: 0.2 mm/z; ap: 0.2 mm; water-based emulsion; face milling |
The published DNM100 application record reports machining 1,675 workpieces.
Indexable High-Feed Milling for Automotive Cylinder Heads
We also offer an indexable high-feed milling solution for automotive cylinder-head machining.
The published application uses a 50 mm cutter with four teeth and an Arbor / Shell mill interface.
| Parameter | Specification |
|---|---|
| Cutter diameter | 50 mm |
| Number of teeth | 4 |
| Interface | Arbor / Shell mill |
| Approach angle | 10°–15° |
| Axial depth of cut (ap) | 0.5–1.5 mm |
| Radial depth of cut (ae) | 70%–80% of cutter diameter |
| Cutting speed (Vc) | 180–350 m/min, depending on alloy |
| Feed per tooth (fz) | 0.6–1.2 mm/tooth |
| Cooling | Internal cooling or external air/coolant jet |
Custom Milling Tools and OEM/ODM Manufacturing
When standard dimensions or cutting geometries do not match an application, we can evaluate customized milling tools based on drawings, samples, workpiece materials, and machining conditions.
Our customization scope includes:
| Customization Item | Available Options |
|---|---|
| Tool dimensions | Cutting diameter, overall length, cutting length, shank diameter |
| Cutting geometry | Flute number, flute geometry, cutting-edge geometry, tool angles |
| Dimensional tolerances | Critical dimensions and tolerances specified in drawings |
| Carbide substrate | Selection according to workpiece material and machining conditions |
| Coating | Selection according to the intended application |
| Branding | Logo marking, marking position, product coding |
| Packaging | Labels, packaging format, quantity per package, packaging artwork |
For OEM/ODM projects, we review drawings or samples, confirm dimensions and tolerances, and evaluate the intended machining application before establishing sample and production specifications.
Milling Tool Manufacturing and Technical Services
Shun Wei Precision Technology is based in Tianjin Airport Economic Area, China.
Our published manufacturing facilities include multiple five-axis grinding centers and professional tool inspection equipment. These facilities support our precision cutting tool manufacturing operations.
Beyond standard milling tool products, our company provides:
Customized non-standard cutting tool manufacturing.
Professional cutting tool regrinding.
Cutting tool outsourcing management.
Metal cutting solutions.
Technical drawing review and sample development for OEM/ODM projects.
This combination of milling tool products, customized manufacturing, and technical services supports both standard tool procurement and application-specific tooling projects.
Request a Milling Tool Quotation
Looking for micro end mills, high-feed end mills, roughing tools, PCD cutters, or indexable face milling tools?
Send us the required model, dimensions, drawing, workpiece material, or machining application. For repeat orders, you can also share your previous tool specifications.
Contact Shun Wei Precision Technology to discuss your milling tool requirements and request a quotation.
With abundant experience, we are one of the most reliable milling tool manufacturers and suppliers in China. We warmly welcome you to buy durable milling tool at competitive price from our factory. If you have any enquiry about cooperation, please feel free to email us.
