Lathe Chucks for Conventional and CNC Lathes
Different workpieces require different clamping arrangements. Our lathe chuck range includes three-jaw self-centering, four-jaw self-centering, four-jaw independent, and two-jaw self-centering designs, together with soft jaws for CNC hydraulic power chucks.
We offer different jaw configurations, mounting connections, and chuck sizes for conventional and CNC turning applications. Selected models also support non-standard dimensions and drawing-based customization.
-

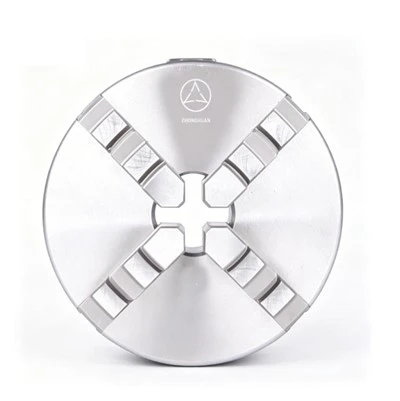

4-jaw Self-centering Scroll ChuckThis 4-jaw self-centering scroll chuck adopts scroll linkage structure, four jaws move synchronously for automatic centering, greatly saving workpiece clamping time vs independent 4 jaw chuck....
-
3-Jaw Self-Centering Chuck Soft JawsRZ Series 3 Jaw Self-centering Chuck Soft Jaws include One-piece Soft Jaws and Type C Soft Top Jaws, widely matched with hydraulic power chuck for CNC lathe turning machine. Made of premium steel,...
-
Short Taper 4-Jaw Independent Lathe ChuckOur Type C Short Taper 4-Jaw Independent Lathe Chuck is a high-precision workholding tool, ideal for clamping both regular and irregular-shaped workpieces. Each jaw can be adjusted independently,...
-
Two Jaw Self-centering ChuckF type two jaw self-centering chuck is professional workholding equipment designed for irregular, rectangular and special-shaped workpieces.
-
Short Taper Three-Jaw Self-Centering ChuckOur short taper 3-jaw self-centering lathe chuck is precision manufactured from high-grade forged steel, available in Form A1 (inner tapped holes connection) and Form A2 (adapter plate connection).
1. Choose the Right Lathe Chuck for Your Workpiece
Three-Jaw Self-Centering Chuck
The three-jaw design moves all three jaws together to center the workpiece. It is suitable for round and hexagonal metal workpieces and routine turning applications.
Four-Jaw Self-Centering Chuck
All four jaws move simultaneously through a scroll mechanism. This arrangement provides synchronized clamping for round and square workpieces. Our published models are suitable for bench lathes, conventional lathes, and small CNC lathes.
Four-Jaw Independent Chuck
Each jaw moves independently, allowing operators to adjust individual clamping positions. This design is suitable for irregular and asymmetrical workpieces that require separate jaw positioning.
Two-Jaw Self-Centering Chuck
The two jaws move together through a worm-driven mechanism. This configuration is designed for rectangular, irregular, and specially shaped workpieces.
2. Lathe Chuck Specifications and Available Models
Our published product range includes the following sizes, materials, mounting arrangements, and configurations.
| Product | Sizes / Models | Construction and Mounting |
|---|---|---|
| Four-Jaw Self-Centering Scroll Chuck | D80, D100, D125, D160, D200, D250 | Alloy steel body, surface-hardened jaws, worm and scroll mechanism, standard mounting-hole layout |
| Four-Jaw Independent Chuck Type C | 160 mm shown in technical drawing; published standard range 200–500 mm | Forged steel body, heat-treated, short-taper mounting, studs and locking nuts |
| Two-Jaw Self-Centering Chuck F Type | 100F, 125F, 130F, 160F, 200F, 250F, 315F, 325F, 380F, 400F, 500F, 630F, 800F, 1000F, 1250F, 1600F | Forged steel body, hardened construction, worm-driven synchronized jaws |
| Short-Taper Three-Jaw Self-Centering Chuck | 165, 200, 250, 252, 315, 325, 380, 400, 500 mm | Forged steel body, integral hardening, worm mechanism |
Mounting Options
Our short-taper three-jaw self-centering chuck is available with two connection arrangements:
- A1: Internal threaded-hole connection.
- A2: Adapter flange connection.
For the four-jaw independent Type C chuck, the published technical drawings list short-taper numbers 3, 4, 5, 6, 8, 11, and 15.
Check the required taper and mounting dimensions when selecting a model.
3. Chuck Soft Jaws for CNC Hydraulic Power Chucks
We also supply RZ-series three-jaw chuck soft jaws for CNC hydraulic power chucks.
Available configurations include:
- One-piece soft jaws.
- C-type soft jaw top jaws.
- Unhardened steel soft jaw blanks that can be machined on a lathe to create the required gripping profile.
Published models include RZ1180, RZ11100, RZ11200C, RZ11240C, and RZ11250C. These soft jaws are designed for 5-inch, 6-inch, 8-inch, and 10-inch CNC hydraulic power chucks.
The machinable soft jaw blanks allow operators to create gripping profiles for their particular workpieces. We also accept customization of soft jaw thickness and height according to drawings or samples.
4. Non-Standard Chuck Configurations
For projects requiring dimensions beyond the published configurations, we offer the following product-specific customization options.
| Product | Available Customization |
|---|---|
| Four-Jaw Self-Centering Chuck | Non-standard outside diameter and mounting-hole positions |
| Two-Jaw Self-Centering Chuck | Rear connection, mounting-hole layout, special jaws, and non-standard dimensions |
| Three-Jaw Chuck Soft Jaws | Special thickness and height according to drawings or samples |
| Four-Jaw Self-Centering Chuck | Hydraulic version available as a customized order |
For customized orders, send us the relevant drawing or sample details, including the required dimensions and connection arrangement.
5. Precision Tooling and Manufacturing Background
At Shun Wei (Tianjin) Precision Technology Co., Ltd., we focus on metal-cutting tools and precision machining solutions.
Our company has five-axis grinding centers and professional tool inspection equipment. Our product portfolio includes:
- Tool holders.
- Milling tools.
- Oil-pipe thread machining tools.
- Machine tool accessories.
- Carbide threading inserts.
Our related technical services include metal-cutting application solutions, custom cutting-tool manufacturing, professional cutting-tool regrinding, and cutting-tool outsourcing management.
This experience in precision tooling and metal-cutting applications forms the broader manufacturing background of our company.
6. Request a Lathe Chuck Quotation
Tell us which chuck type and approximate diameter you need, together with your machine model and mounting connection.
For special jaws or non-standard dimensions, you can also send us a drawing or sample.
Contact us to discuss your lathe chuck requirements and request a quotation.
