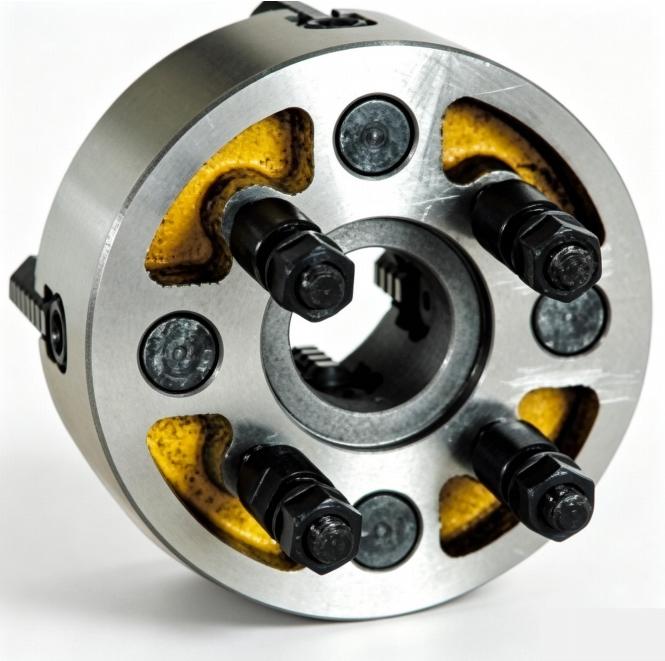

Our Type C Short Taper 4-Jaw Independent Lathe Chuck is a high-precision workholding tool, ideal for clamping both regular and irregular-shaped workpieces. Each jaw can be adjusted independently, offering maximum flexibility for complex machining tasks.
Constructed from premium forged steel with a robust heat treatment process, this chuck ensures exceptional durability, strong clamping force, and long service life. Its short taper design allows for quick and easy mounting directly onto the lathe spindle, saving valuable setup time.
Available in a complete range of standard sizes (200mm to 500mm), it is widely compatible with CNC lathes, conventional lathes, and other metalworking machinery. Whether for professional workshops or industrial production lines, this chuck delivers the reliability and performance you need.

Key Features

Independent 4-Jaw Design

Each jaw adjusts separately for maximum flexibility, perfect for clamping irregular, eccentric, or complex-shaped workpieces.

Premium Forged Steel Construction

Built with high-quality steel and heat-treated for superior hardness, wear resistance, and clamping force.

Short Taper (Type C) Mount

Features a stud and locknut connection for quick, easy, and secure mounting directly onto the lathe spindle.

High Precision & Stability

Precision-engineered for minimal runout, ensuring accurate and stable machining for high-quality results.

Complete Size Range

Available in standard sizes from 200mm to 500mm, suitable for a wide variety of lathes and applications.

Specification

217

Applications

Machine Types

CNC Lathes, Conventional Lathes, Horizontal Lathes.

Workpiece Materials

Metal, Plastic, Wood, etc.

Ideal for

Machining irregular, eccentric, square, rectangular, and complex-shaped parts. Widely used in general manufacturing, automotive parts, mold making, and repair workshops.

FAQ

Q: What is the difference between a 4-jaw independent chuck and a 3-jaw self-centering chuck?

A: A 4-jaw independent chuck allows each jaw to be moved separately, making it ideal for irregular or off-center workpieces. A 3-jaw chuck moves all jaws simultaneously, which is faster for round, symmetrical parts.

Q: Can I use this chuck on my CNC lathe?

A: Yes, this chuck is designed to be compatible with most CNC lathes and conventional lathes with the corresponding spindle nose.

Packing & Shipping

Packing: Each chuck is carefully coated with anti-rust oil and wrapped in a protective plastic film. It is then securely packed in an export-standard fumigated wooden crate or heavy-duty carton.

Shipping: We offer flexible shipping options, including sea freight (FCL/LCL), air freight, and international express (DHL, UPS, FedEx). We can arrange door-to-door delivery for your convenience.
