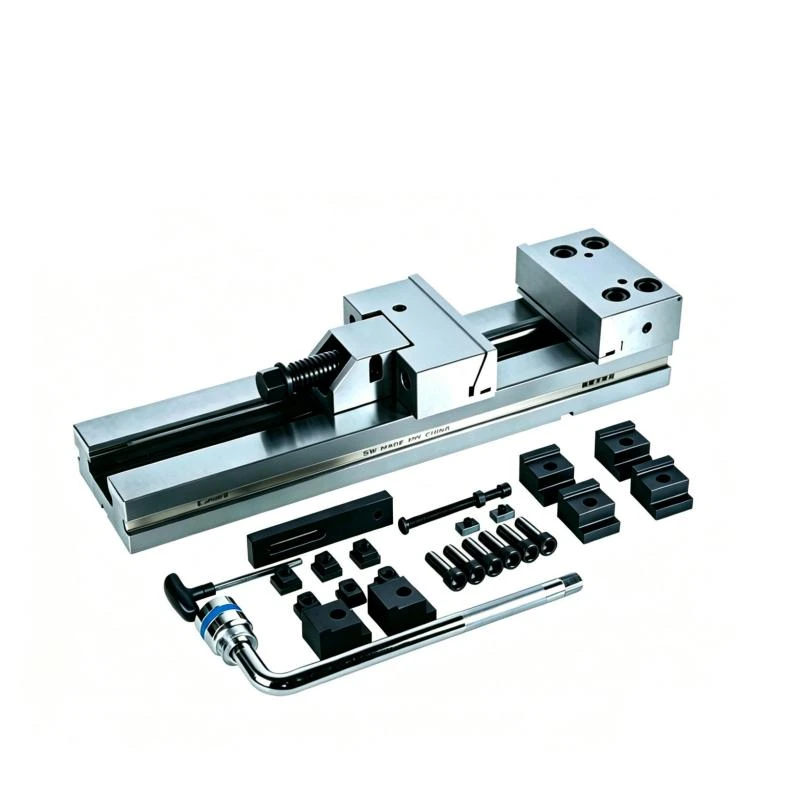

Precision CNC milling machine vise is a high-precision modular workholding fixture specially designed for CNC machining centers, milling machines, grinders and drilling machines. Made of premium alloy steel with full quenching & precision grinding, this modular vise features split combined structure, excellent clamping accuracy and high mechanical rigidity. Full set of mounting accessories are equipped as standard, various jaw width & opening stroke options in stock, non-standard customized size is acceptable for special machining demands. Ideal fixture for batch precision component machining.

Core Advantages

High Precision Manufacturing

Vise body and jaw are quenched and precision surface grinded, tight tolerance on parallelism & perpendicularity, stable repeated clamping accuracy, suitable for high-precision milling, drilling and 5-axis machining operation.

Modular Combination Design

Split modular structure allows single vise usage or multiple vises arranged side by side for multi-station simultaneous clamping, greatly improving CNC machine working efficiency, perfect for mass production of small & medium workpieces.

Full Standard Accessory Package

All essential installation parts are included in one package: ratchet handle, allen wrench, locating plate, positioning keys, T-nuts & clamping blocks, customers can install on machine directly without buying extra spare parts.

Full Size Range & Custom Service

Available in 5/6/7/8 inch jaw width with standard opening from 150mm to 500mm. Custom opening length, mounting hole layout and special structure are available upon customer drawings.

Super High Rigidity Structure

High-grade alloy steel raw material plus thick lead screw transmission design, uniform clamping force, anti-deformation under heavy cutting load, long service life for continuous heavy-duty workshop application.

Product Specification List

Model No.	Jaw Width	Max Opening Stroke	Custom Support
SW-5-150	5 inch	150mm	YES
SW-5-200	5 inch	200mm	YES
SW-6-200	6 inch	200mm	YES
SW-6-300	6 inch	300mm	YES
SW-7-200	7 inch	200mm	YES
SW-7-300	7 inch	300mm	YES
SW-7-400	7 inch	400mm	YES
SW-8-200	8 inch	200mm	YES
SW-8-300	8 inch	300mm	YES
SW-8-400	8 inch	400mm	YES
SW-8-500	8 inch	500mm	YES

Standard Accessory List

1 × Ratchet Handle / 1 × Allen Wrench / 1 × Locating Plate / 2 × Positioning Keys / 6 × T-Nuts / 6 × Clamping Blocks

Applicable Machines

Vertical CNC Machining Center, CNC Milling Machine, Manual Milling Machine, Surface Grinder, Bench Drill Press

Applicable Industries

Precision mold processing, automotive spare parts, automation equipment components, aerospace small parts, general hardware batch machining.

Packaging & Delivery

Packaging Details

Inner Protection: Each modular vise is wrapped in anti-rust oil paper and sealed in a moisture-proof PE bag to prevent corrosion during transit.
Primary Box: Protected by high-density foam padding inside a customized cardboard box, securing the vise and accessories (clamping blocks, screws, torque wrench) from impact damage.
Outer Carton: Reinforced 5-ply corrugated export carton with corner guards, suitable for sea/air freight and long-distance shipping.
Customization: OEM packaging with your brand logo and label is available upon request.

Delivery & Lead Time

Sample Orders: 3-7 working days after payment confirmation.
Bulk Orders: 15-30 working days based on order quantity and specifications.
Shipping Options:
By sea (LCL/FCL) for large orders, cost-effective for bulk shipments.
By air or express (DHL/UPS/FedEx) for urgent orders, with door-to-door delivery available.
Tracking: Full tracking number provided once shipment is dispatched.
