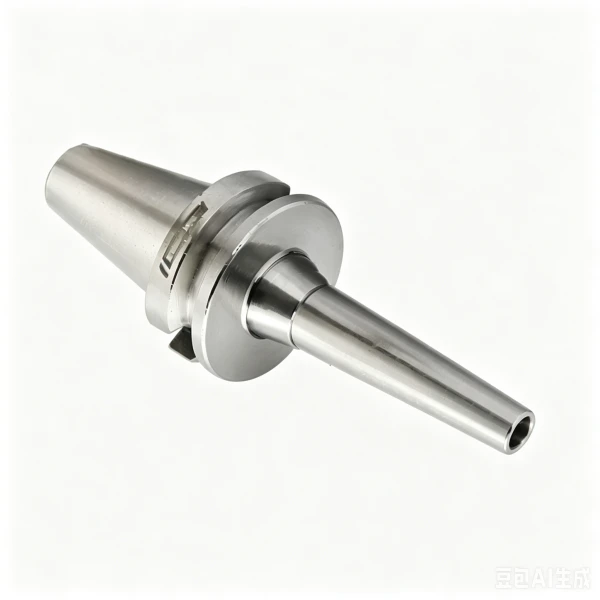

Product Features
Working Principle and Core Characteristics: By pulling the collet backward, the mechanism simultaneously clamps the workpiece radially while drawing it a short distance toward the spindle (typically involving a minimal displacement). This characteristic makes it highly suitable for initial machining operations where strict tolerances on workpiece length are not required; furthermore, the clamping force increases in direct proportion to the machining pressure applied. For instance, the Chandox PLVE series hydraulic chucks feature a pull-back design that ensures the workpiece seats firmly against the datum face, thereby preventing any shifting or displacement.
High Clamping Force and High Rigidity: The pull-back structural design delivers exceptional clamping efficiency. For example, certain chuck models generate an actuation pull force of up to 50 kN, resulting in a clamping force at the front end that can reach as high as 115 kN. Additionally, the integral, one-piece construction ensures outstanding overall rigidity, which contributes to improved surface finish quality during machining.
Rapid Changeover and Exceptional Clearance: Incorporating a quick-change mechanism, manual tool changes can be completed in as little as 30 seconds-or even just 10 seconds when utilizing specialized tools-thereby drastically minimizing machine downtime. Certain models feature a compact, slender profile, enabling flexible operation even with small-diameter workpieces or within confined spaces where interference is a concern.
High Precision and High Speed: Benefiting from its symmetrical and uniform clamping force distribution, the pull-back design achieves exceptionally low runout-with a repeatability of up to 0.010 mm-making it ideally suited for high-speed, precision machining applications. For instance, products from Royal are frequently utilized in machining operations reaching rotational speeds of up to 6,000 RPM.
Superior Sealing and Durability: Engineered for harsh machining environments, many products employ O-rings, sealing rings, or fully sealed designs to effectively prevent the ingress of chips and coolant, thereby extending service life and reducing maintenance requirements.
FAQ
Q: How does it differ from a "dead-stop" collet?
A: This is the most common point of confusion. The fundamental difference lies in the impact on the workpiece's "Z-axis position." A draw-back collet pulls the workpiece backward during clamping, resulting in a shift in its axial position. In contrast, a "dead-stop" collet maintains the workpiece's axial position unchanged during clamping; therefore, it is frequently used for secondary operations or in applications where high length accuracy is required.
Q: How should I choose between them?
A: Pull-back Type: This is the ideal choice for initial machining operations (such as turning the outer diameter of bar stock), as any Z-axis micro-displacement induced by the clamping action can be easily corrected during subsequent face-turning operations. It also serves as an excellent complement to bar feeder systems.
Dead-Center Collet: For secondary machining operations requiring precise positioning and seamless handoff-such as on dual-spindle turning centers-the use of a "dead-center" configuration is strongly recommended for the sub-spindle to prevent any variation in part length during the transfer process.
Q: Is it prone to damage?
A: High-quality pull-back chucks are extremely durable. The core components of many brands undergo carburizing and hardening treatments-reaching a hardness of HRC 61 or even higher-and feature a fully sealed design to protect the internal mechanisms, ensuring a long service life even under harsh machining conditions.
Q: How does it perform when clamping irregular workpieces?
A: It performs quite exceptionally! This is particularly true for certain models designed specifically for heavy-duty cutting-such as Chandox's PLVE series-where the jaws automatically adapt to the surface contours of irregular workpieces (such as castings and forgings), providing powerful clamping force to prevent the workpiece from shifting during machining.
