Key Features
BBT dual-contact spindle system for enhanced rigidity
4.5° slim nose design for deep cavity machining
Face coolant delivery for improved cooling efficiency
High concentricity (Runout ≤ 0.003 mm at 3×D)
High-speed balancing: G2.5 / 25,000 RPM or higher
Strong 360° shrink-fit clamping force
Excellent vibration damping
Superior surface finish
Extended cutting tool life
Suitable for carbide end mills and carbide drills
Product Advantages
BBT Dual Contact
The BBT taper contacts both the spindle taper and flange simultaneously, significantly improving rigidity and reducing vibration during high-speed machining.
01
High Clamping Force
Shrink-fit technology provides uniform 360° tool clamping without hydraulic components or collets, ensuring excellent machining stability.
02
Face Coolant Design
Coolant is delivered directly to the cutting zone through the front outlet, improving heat dissipation, reducing built-up edge, and increasing machining efficiency.
03
High Precision
Precision grinding and strict quality control guarantee ultra-low runout, helping improve dimensional accuracy and surface finish.
04
High-Speed Machining
Each holder is dynamically balanced to minimize spindle vibration and maintain stable performance at high rotational speeds
05

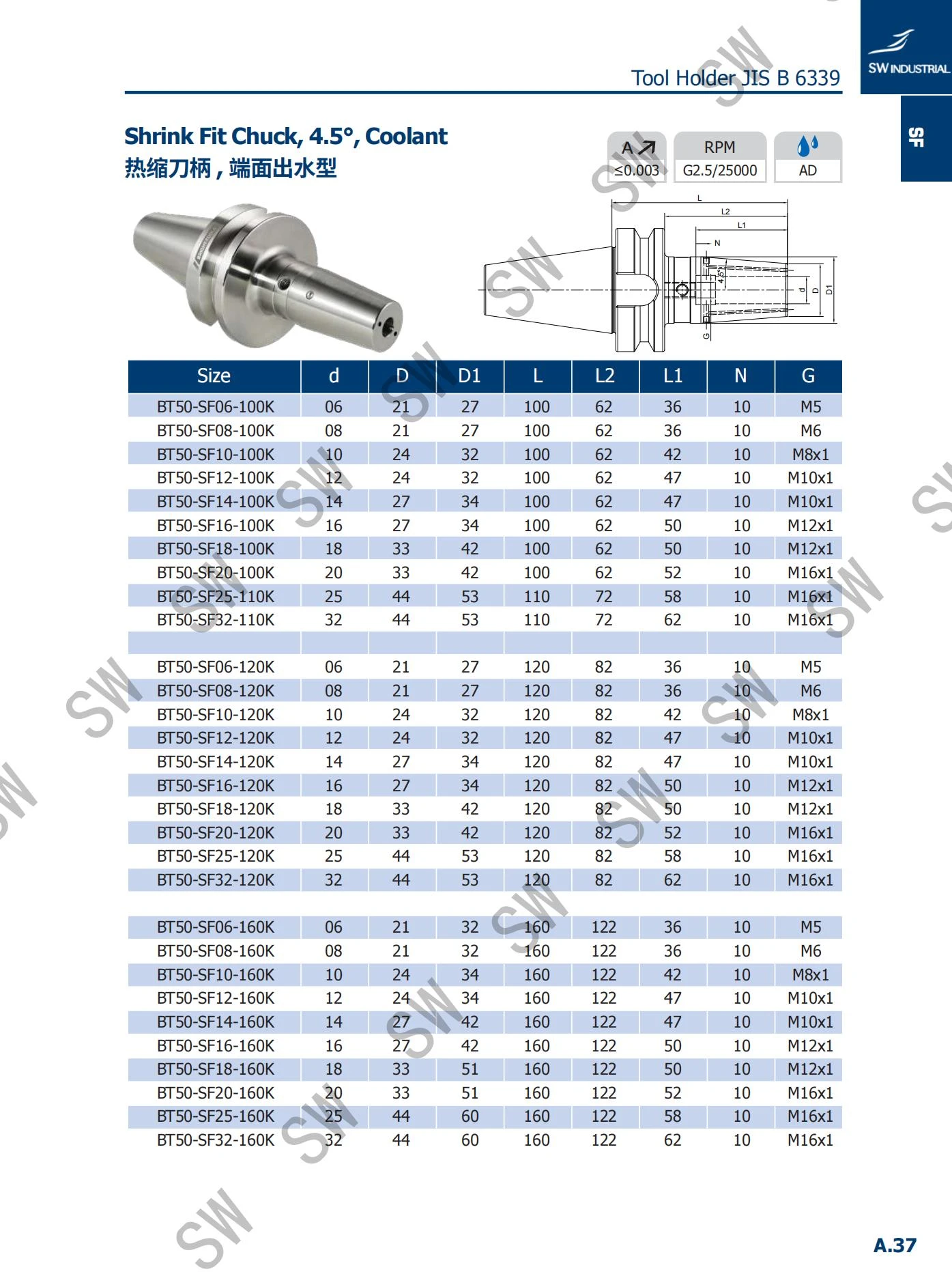

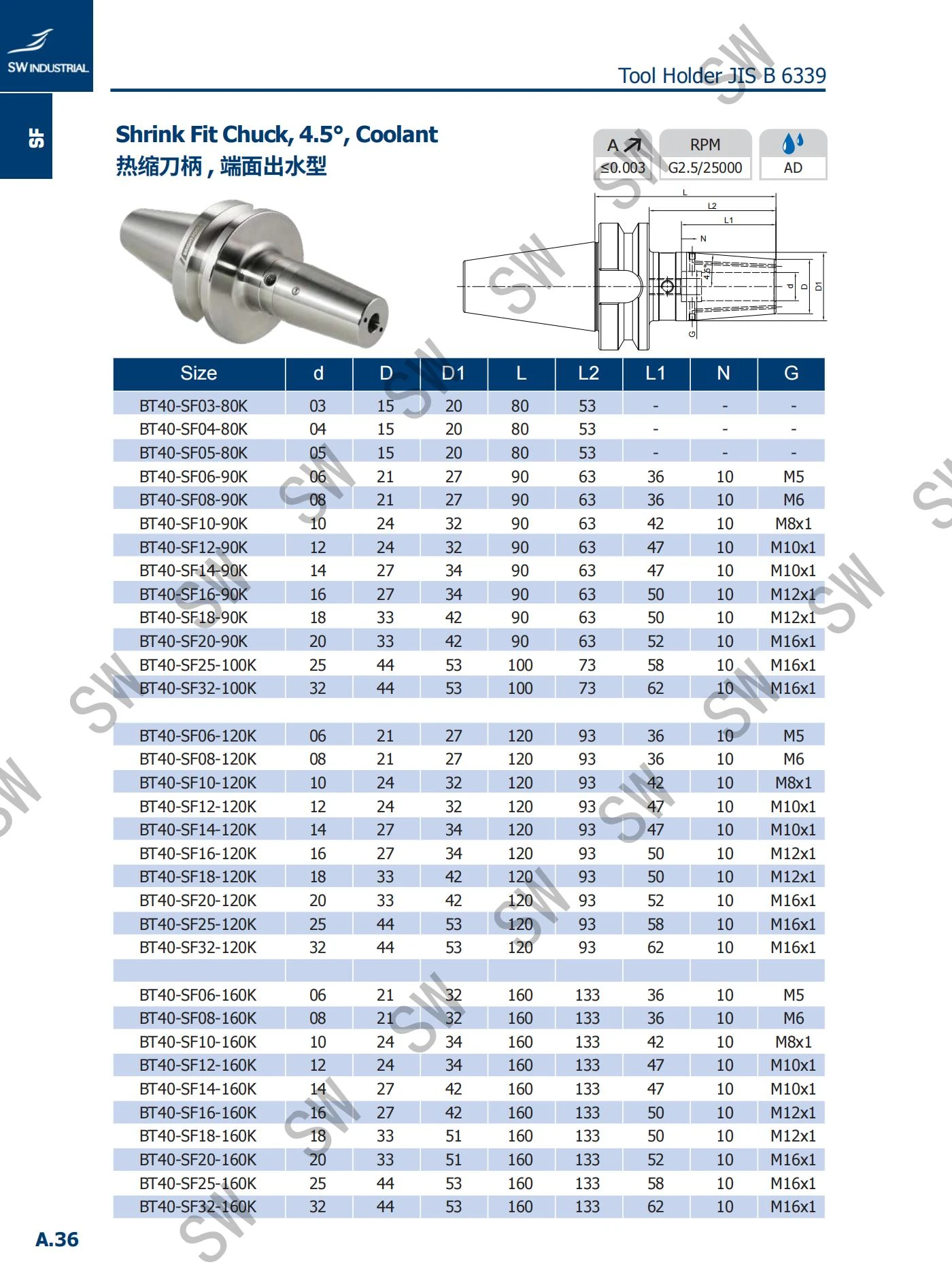

Technical Specifications
Applications
The BBT Shrink Fit Chuck is widely used in:
- Automotive Parts Manufacturing
- Aerospace Components
- Mold & Die Industry
- Precision Mechanical Parts
-
Medical Components
-
Energy Equipment
-
General CNC Machining
