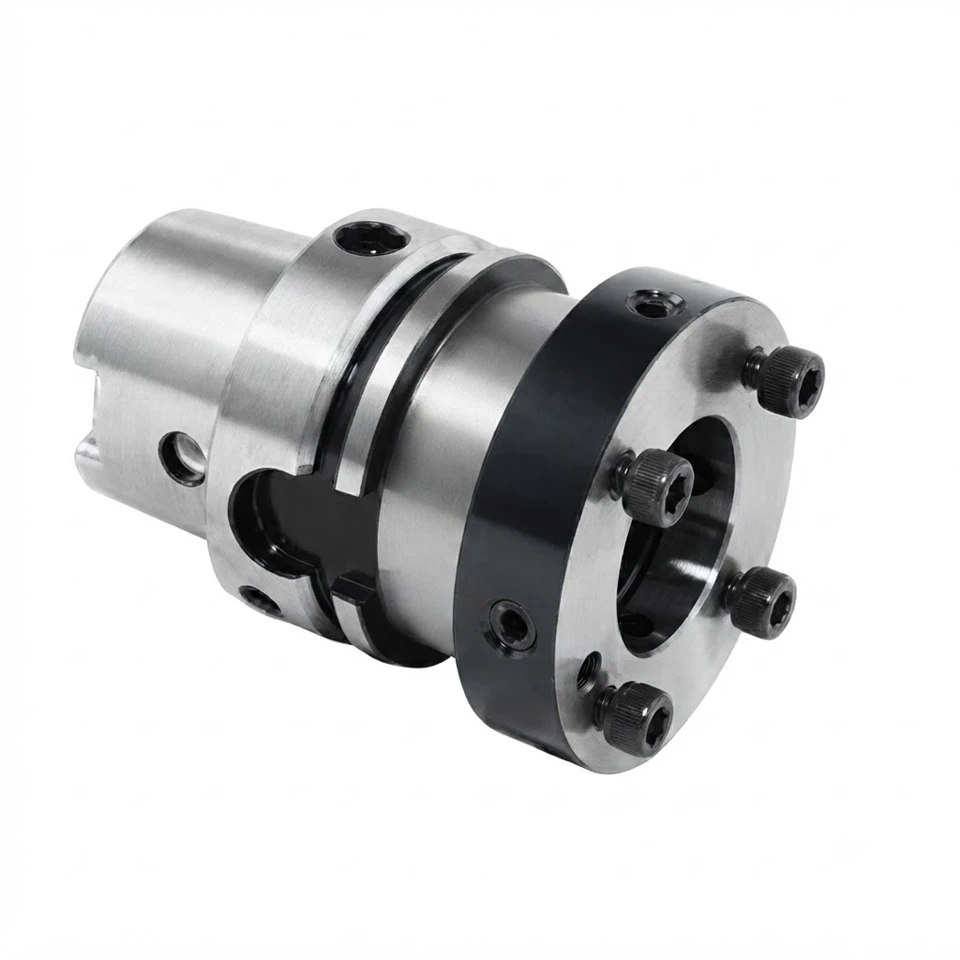

Runout Adjustable Flange Adapter

The Runout Adjustable Flange Adapter is a high-precision toolholder system engineered for high-accuracy CNC machining applications, such as precision mold manufacturing, aerospace component machining, high-speed finishing, and boring operations. Its standout feature is the ability to allow operators to fine-tune and correct the radial runout of the cutting tool at the micrometer level, effectively eliminating minor cumulative errors between the machine spindle and the toolholder to achieve ultimate concentricity and machining accuracy.

Micrometric Compensation Mechanism: The adapter utilizes circumferentially distributed micro-adjustment screws at the front end (operating on a "push-pull" or opposing balance principle) to apply minute, directional pre-tightening forces onto the internal or front clamping section.

Concentricity Correction：

After mounting the toolholder and cutting tool onto the machine spindle, a dial indicator or test indicator is used to measure the radial runout at the tool tip.

If any eccentricity is detected, the operator can loosen one set screw and tighten the opposing one to perform a micrometer-level ($\mu m$) correction of the tool's position.

Balanced Load & High-Efficiency Performance: Once precisely calibrated, the rotational center of the cutting tool aligns closely with the spindle's rotational axis (typically reducing runout to an extremely tight tolerance). This not only significantly improves workpiece surface finish and extends tool life, but also ensures even chip loads across multi-edge cutting tools, preventing premature wear or overloading on a single flute.
