Hydraulic Tool Holders Manufacturer & Supplier
Hydraulic tool holders support precision CNC machining through controlled tool clamping and accurate positioning. Our precision tooling capabilities include five-axis grinding centers, tool inspection equipment, custom tooling development, and OEM/ODM project support. We coordinate technical requirements, product specifications, and export orders to help customers source tooling for their machining operations.
-
![Hydraulic Reduction Sleeves]()
Hydraulic Reduction SleevesHydraulic Reduction Sleeves adapt compatible hydraulic tool holders to smaller cylindrical tool shanks. The sleeve fits the holder bore and provides a precision bore for the cutting tool, allowing... -
![Extended-Length Hydraulic Tool Holders]()
Extended-Length Hydraulic Tool HoldersExtended-Length Hydraulic Tool Holders provide additional reach for CNC machining of deep cavities, recessed surfaces and features with limited tool access. An internal hydraulic expansion... -

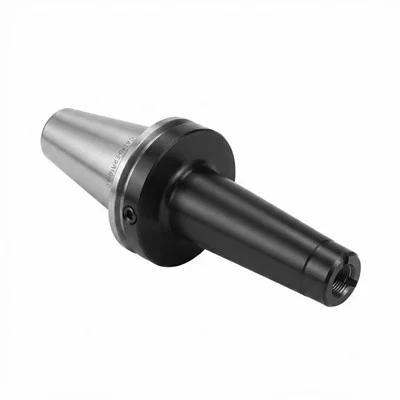

![Slim Hydraulic Tool Holders]()
Slim Hydraulic Tool HoldersSlim Hydraulic Tool Holders combine hydraulic expansion clamping with a narrow nose profile for precision machining in restricted spaces. The internal clamping mechanism secures cylindrical-shank... -
![CAT Hydraulic Tool Holders]()
CAT Hydraulic Tool HoldersCAT Hydraulic Tool Holders use an internal hydraulic expansion mechanism to clamp compatible cylindrical-shank cutting tools. The CAT spindle interface provides the machine connection, while... -
![HSK-A Hydraulic Tool Holders]()
HSK-A Hydraulic Tool HoldersHSK-A Hydraulic Tool Holders secure compatible cylindrical-shank cutting tools through an internal hydraulic expansion mechanism. The clamping system applies radial pressure around the tool shank... -

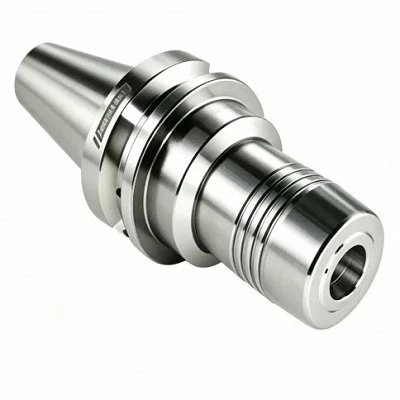

![BT Hydraulic Tool Holders]()
BT Hydraulic Tool HoldersBT Hydraulic Tool Holders clamp compatible cylindrical-shank cutting tools through an internal hydraulic expansion mechanism. The system provides concentric clamping and helps control radial...
Why Choose Us
Technical Requirement Review
We review the spindle interface, nominal tool shank diameter, gauge length, and operating conditions before confirming the requested configuration. This helps align product selection with the machine setup and machining objective.
Precision Manufacturing Resources
Five-axis grinding centers and dedicated tool inspection equipment support precision tooling manufacturing and dimensional evaluation. Inspection requirements can be defined according to the selected product drawing and order specifications.
Custom Tooling Coordination
For OEM/ODM projects, we can review technical drawings, samples, dimensional requirements, product identification, and packaging instructions. Each request is assessed according to its design and production requirements.
International Order Support
Product specifications, quantities, packaging details, shipping arrangements, and delivery schedules are coordinated during order processing. Clear documentation helps maintain consistency between the approved configuration and the shipment.
Key Product Features
Hydraulic Clamping Mechanism
Hydraulic tool holders use an internal pressure mechanism to clamp a compatible cylindrical tool shank. The clamping procedure and permitted shank dimensions must follow the selected model's instructions.
Controlled Tool Positioning
The clamping system supports accurate tool positioning for suitable machining operations. Actual radial runout depends on holder design, tool shank condition, assembly cleanliness, and the specified inspection method.
Application-Specific Configuration
Holder interface, overall length, gauge length, clamping diameter, and coolant arrangement should match the intended machining setup. Confirming these details before ordering helps establish the correct configuration.
Applications
Precision Milling
Hydraulic tool holders can be considered for compatible finishing and light milling operations where tool positioning, surface finish, and dimensional consistency are important. The holder and cutting tool must be suitable for the cutting load and spindle conditions.
Drilling and Reaming
For compatible cylindrical-shank tools, hydraulic clamping supports applications requiring stable positioning and controlled runout. Tool diameter, gauge length, cutting conditions, and holder specifications should be checked together.
Mold and Precision Component Machining
Mold details and precision components may require careful control of tool reach and positioning. Select the holder geometry according to workpiece access, required machining depth, and the available spindle interface.
Technical Specifications
|
Parameter |
Specification |
|
Tool shank diameter |
10 mm |
|
Gauge length |
50 mm |
|
Radial runout |
≤ 0.003 mm |
|
Maximum spindle speed |
25,000 rpm |
|
Dynamic balance |
G2.5 at 25,000 rpm |
|
Spindle interface |
BT40 |
|
Overall length |
100 mm |
|
Tool shank tolerance |
h6 |
|
Coolant arrangement |
Through-coolant |
|
Clamping method |
Hydraulic expansion |
|
Application |
CNC milling, drilling, and reaming |
Product Selection Guidance
Match the Spindle Interface
Identify the complete spindle interface designation and verify the relevant mating dimensions. The interface must match the machine spindle before other holder dimensions are considered.
Confirm Shank Diameter and Gauge Length
Provide the nominal tool shank diameter, permitted shank tolerance, and required gauge length. Gauge length affects tool reach and the working geometry of the setup, so it should be specified rather than estimated.
Define Speed and Accuracy Requirements
State the target spindle speed, required radial runout, machining operation, and applicable balancing requirements. Confirm that the selected model is rated for the intended operating conditions.
Specify Coolant and Documentation
Indicate whether through-coolant is required and identify any drawing, inspection report, or material documentation needed for purchasing approval.
Manufacturing and Quality Control
Dimensional Inspection
Critical dimensions and spindle interface features should be evaluated against the applicable product drawing. Inspection points and acceptance criteria should be agreed before production or order approval.
Runout and Balancing Verification
Specify the required radial runout tolerance, measurement position, balancing grade, and operating speed. These values should correspond to the selected model and the intended application.
Technical Records
Available product drawings, inspection reports, and material documents can be confirmed during order review. Any requested certification or compliance statement should be supported by applicable documentation.
Specification Confirmation
Before production or dispatch, confirm the approved model, dimensions, quantity, and any agreed inspection requirements. Keeping these details consistent supports purchasing review and incoming inspection.
OEM/ODM Customization
Drawing and Sample Assessment
Submit a technical drawing or sample with key dimensions, spindle interface details, tool shank requirements, and application information. These details provide the basis for assessing the requested configuration.
Product Configuration
Customization requests may cover dimensions, product identification, branding, and packaging. Feasibility depends on the design, required tolerances, and production capability.
Approval Before Production
Confirm the final drawing, inspection criteria, sample requirements, order quantity, and delivery schedule before production begins. Changes to approved specifications should be reviewed and documented.
Packaging and International Shipping
Packaging Requirements
Specify individual packaging, quantities per package, labeling, and handling instructions. Packaging details can be aligned with product identification and the receiving facility's requirements.
Export Order Coordination
Confirm the shipping method, delivery terms, required export documents, and expected dispatch schedule during order processing. The final arrangement depends on the destination and order requirements.
Shipment Identification
Use consistent model numbers, product descriptions, and order references across quotations, packing lists, package labels, and shipment records. This supports receiving checks and inventory identification.
Frequently Asked Questions
Request a Hydraulic Tool Holder Quote
Send your required spindle interface, tool shank diameter, gauge length, target spindle speed, accuracy requirements, and order quantity. Include the machining application and any coolant or documentation requirements.
With abundant experience, we are one of the most reliable hydraulic tool holders manufacturers and suppliers in China. We warmly welcome you to buy durable hydraulic tool holders at competitive price from our factory. If you have any enquiry about cooperation, please feel free to email us.
