Collet Chucks

Collet Chuck Manufacturer & Global CNC Tooling Supplier

Collet chucks provide reliable tool clamping for CNC milling, drilling, and general machining applications. Selecting the right holder depends on the spindle interface, ER series, tool shank diameter, gauge length, and machining requirements.

We supply CNC tooling to industrial customers worldwide, offering standard product selection, OEM/ODM customization, and export order support.

High-Speed Balanced ER Collet Chucks
High-Speed Balanced ER Collet Chucks hold cylindrical-shank cutting tools for CNC machining applications requiring controlled rotation and accurate tool positioning. The ER clamping system...

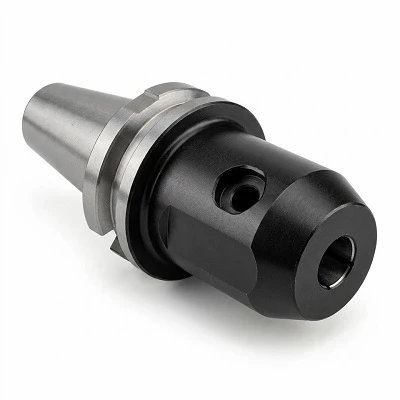

Coolant-Through ER Collet Chucks
Coolant-Through ER Collet Chucks deliver cutting fluid through an internal passage toward the cutting zone. The ER clamping system secures compatible cylindrical-shank tools with a matching collet...
Extended-Length ER Collet Chucks
Extended-Length ER Collet Chucks provide additional tool reach for CNC machining operations involving deep cavities, recessed surfaces, narrow slots, and restricted access areas. The ER clamping...
Slim ER Collet Chucks
Slim ER Collet Chucks are CNC tool holders with a reduced front-end profile for machining areas with limited clearance. The ER clamping system accommodates compatible cylindrical-shank cutting...
Short ER Collet Chucks
Short ER Collet Chucks are designed to hold cylindrical-shank cutting tools in CNC machining applications where compact holder dimensions and spindle clearance are important. The holder uses a...
High-Precision ER Collet Chucks
High-Precision ER Collet Chucks hold cylindrical-shank cutting tools for CNC milling, drilling, and precision component machining. The assembly uses an ER collet and clamping nut to secure the...

Why Choose Us

Precision-Focused Production

Precision grinding and dimensional inspection support the production and verification of tooling components. Product requirements are assessed against the applicable drawings and specifications.

Clear Model Selection

Our selection process considers the spindle interface, ER series, clamping diameter, gauge length, and accessory requirements. Providing these details helps identify a suitable configuration and reduces uncertainty during technical review.

Custom Project Support

For customized orders, drawings, samples, dimensional tolerances, marking requirements, and intended applications can be submitted for review. Technical details are assessed before the project proceeds to quotation and production planning.

Coordinated Export Orders

Order processing covers the confirmed model, quantity, inspection requirements, packaging details, and destination information. These details help align product preparation and shipping arrangements with the purchase order.

Collet Chuck Product Range

ER Collet Chucks

ER collet chucks use a compatible collet and nut to clamp cutting tools with suitable shank diameters. They are used in a range of CNC machining setups, including milling and drilling. Select the ER series according to the required clamping range, tool shank size, and holder dimensions.

NT ER Collet Chucks

NT ER collet chucks are available in specified configurations within the product range. Selection should be based on the exact spindle interface, taper dimensions, gauge length, and compatible accessories. Refer to the relevant model drawing to confirm dimensional requirements before ordering.

Configuration and Accessory Matching

Collets, nuts, and tightening tools should be selected to match the holder system. When requesting a quotation, specify whether the order is for the holder alone or a complete assembly, including the required accessories.

Key Product Features

Consistent Clamping Setup

The holder, collet, nut, and cutting tool work together as a clamping assembly. Correct component matching, clean contact surfaces, and tightening according to the applicable instructions support stable tool retention during machining.

Multiple ER Series

Different ER series provide different nominal clamping ranges. Matching the collet series and bore to the tool shank helps establish the intended fit. The selected holder must also match the machine interface and required working length.

Application-Based Configuration

Gauge length, holder dimensions, operating speed, and cutting conditions affect tool setup. Reviewing these requirements together helps determine whether a particular configuration is suitable for the intended machining operation.

Typical Applications

CNC Milling

Collet chucks can hold compatible end mills for slotting, contouring, shoulder milling, and general component machining. The selected configuration should provide the required tool access and suit the spindle interface and cutting conditions.

Drilling and Holemaking

Compatible shank tools can be held for drilling and related holemaking operations when the tool, collet, and holder specifications are aligned. Tool diameter, working length, and machine requirements should be confirmed during selection.

Mold and Component Machining

Collet chucks are used in tooling setups for mold components, precision mechanical parts, and general engineering work. Selection depends on tool geometry, access requirements, and the dimensions of the machining setup.

Technical Specifications

Parameter	Specification
Product type	ER collet chuck
Collet system	ER8, ER11, ER16, ER20, ER25, ER32, ER40, ER50
Clamping mechanism	ER spring collet and nut
Spindle interface	NT30, NT40, NT50
Clamping range	0.5–34 mm
Gauge length	35–120 mm
Overall length	Model-specific
Holder outer diameter	Model-specific
Runout tolerance	≤ 0.010 mm (standard); ≤ 0.005 mm
Balancing grade	G6.3 at 10,000–12,000 RPM
Maximum rated speed	10,000–15,000 RPM

OEM & ODM Customization

Drawing-Based Development

Submit a technical drawing or sample with the required dimensions, interface details, tolerances, and intended application. The information is reviewed to assess the requested configuration and establish quotation requirements.

Product Marking

Custom identification and private-label marking can be discussed for suitable projects. Provide the required text, artwork, marking position, and any applicable size or legibility requirements for review before production.

Packaging Requirements

Packaging specifications can be reviewed according to the product configuration and order quantity. Provide labeling instructions, packaging preferences, and shipment requirements when submitting the inquiry.

Quality Control

Dimensional Verification
Relevant dimensions are checked against the applicable drawing or agreed specifications. Critical dimensions and acceptance tolerances should be identified before production so inspection can follow the confirmed requirements.

Product Inspection
Inspection can address specified dimensions, visible surface condition, product identification, and packaging condition. The inspection scope is determined by the product and the requirements agreed for the order.

Inspection Documentation
If an order requires inspection reports, dimensional records, or defined acceptance criteria, include these requirements in the inquiry. The available documentation and inspection scope should be confirmed before order approval.

Packaging & Shipping

Protective Export Packaging
Packaging is selected according to the product configuration and order requirements. Protective materials and suitable packing methods help preserve tooling surfaces and product identification during handling, storage, and international transport.

Shipping Coordination
Shipping arrangements are based on the confirmed quantity, destination, packaging requirements, and selected shipping method. Provide the delivery address, preferred transport method, and required export documents during order review so the shipping plan can be coordinated with the order schedule.

Frequently Asked Questions

Q: How do I select the correct collet chuck?

A: Provide the machine spindle interface, ER series, tool shank diameter, gauge length, and intended application. Compare these details with the selected model drawing to confirm compatibility.

Q: Which ER series are available?

A: Common ER series include ER8, ER11, ER16, ER20, ER25, ER32, ER40, and ER50. Availability depends on the specific holder configuration. Confirm the required series and interface when requesting a quotation.

Q: Are collets, nuts, and wrenches included?

A: The supplied components depend on the selected configuration and quotation. State whether you require the holder only or an assembly with matching collets, nut, and tightening tool.

Q: Can you support OEM/ODM orders?

A: Submit the drawing or sample, target quantity, dimensional requirements, marking details, and intended application. The requested configuration can then be reviewed for technical and order requirements.

Q: Can you provide runout and balancing specifications?

A: Include the required runout tolerance, measurement position, operating speed, and balancing requirements in your inquiry. The applicable specifications must be confirmed for the selected model.

Q: What information should I include in a quotation request?

A: Provide the spindle interface, ER series, tool shank diameter, required dimensions, quantity, destination country, and any customization or inspection requirements. Attach a drawing when available to support technical review.

Request a Quote for Collet Chucks

Send your required spindle interface, ER series, tool shank diameter, gauge length, quantity, and destination country. Include a technical drawing and any OEM/ODM, inspection, marking, or packaging requirements.

With abundant experience, we are one of the most reliable collet chucks manufacturers and suppliers in China. We warmly welcome you to buy durable collet chucks at competitive price from our factory. If you have any enquiry about cooperation, please feel free to email us.
